DC Brushless Brake Servo Motor (Slotless)
SBR30101Z-02
Overview
Combination

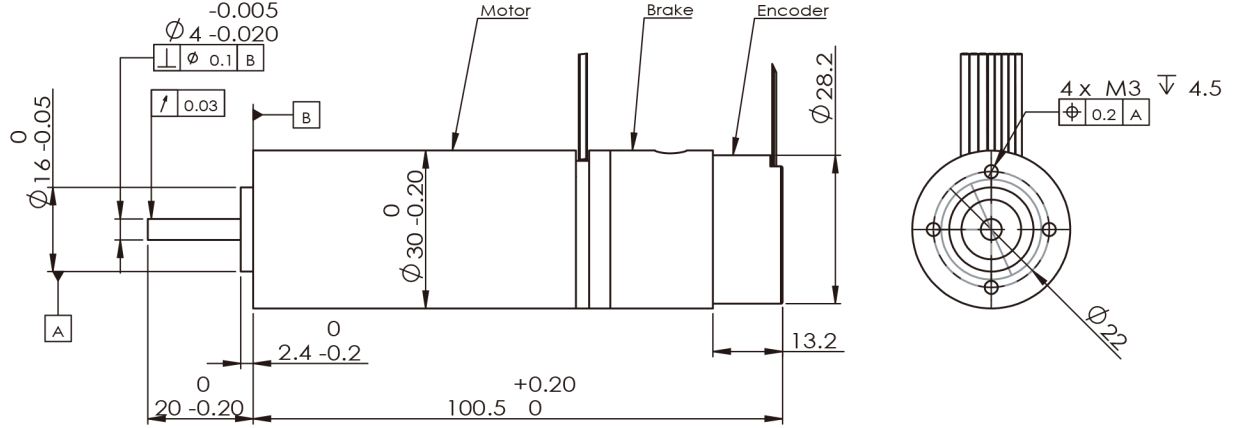

Drawing
Download
SBR30101Z-02
Data Sheet
Download
3D-CAD File
Download

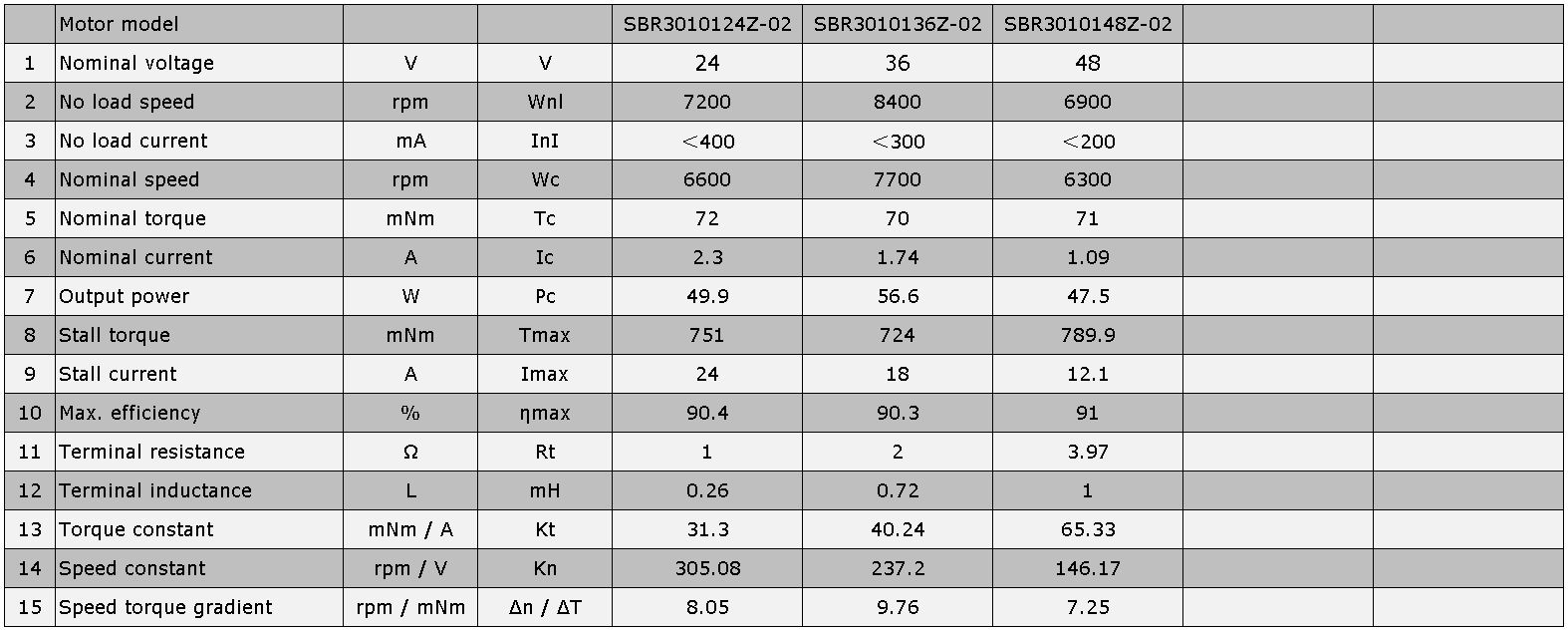

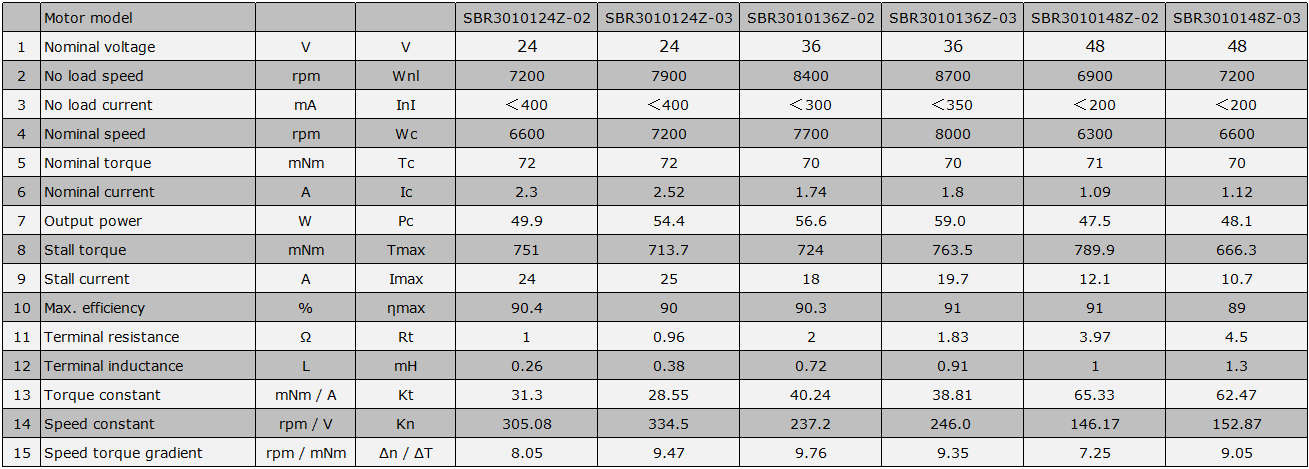

Motor Specification：

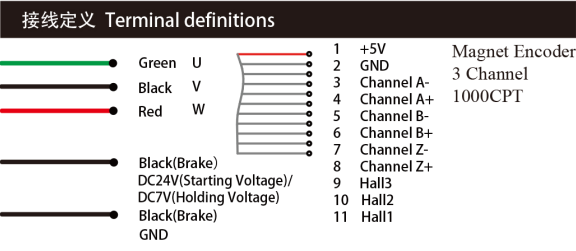

Motor Wiring：
Optional Accessory：
Motor Driver:
BLS010-T
Please refer to BLS010-T sheet for details
Motor Driver
BLS010-S DC Servo Driver
BLS010-T DC Servo Driver
