ProductDetailsTechnical data
-

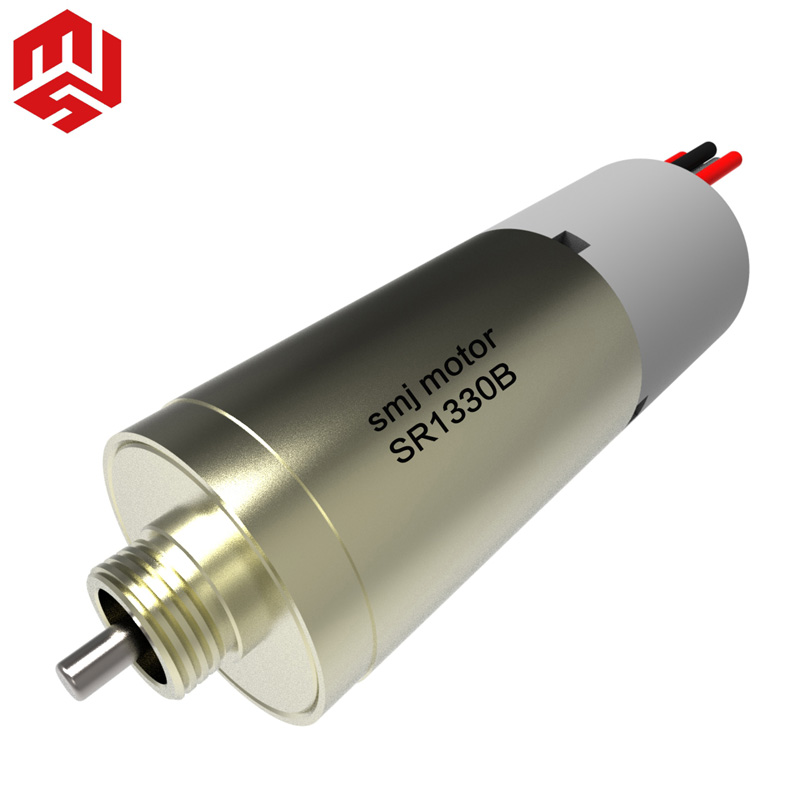

SR1330BMagner Encoder 3 Channels 1000CPT View More Data SheetNominal Voltage: 3~15V Maximum torque: 1.32mNm No load Speed: 13200rpm Stall Torque: 3.4mNm Outside Diameter: 13mm Length: 29.8mm -

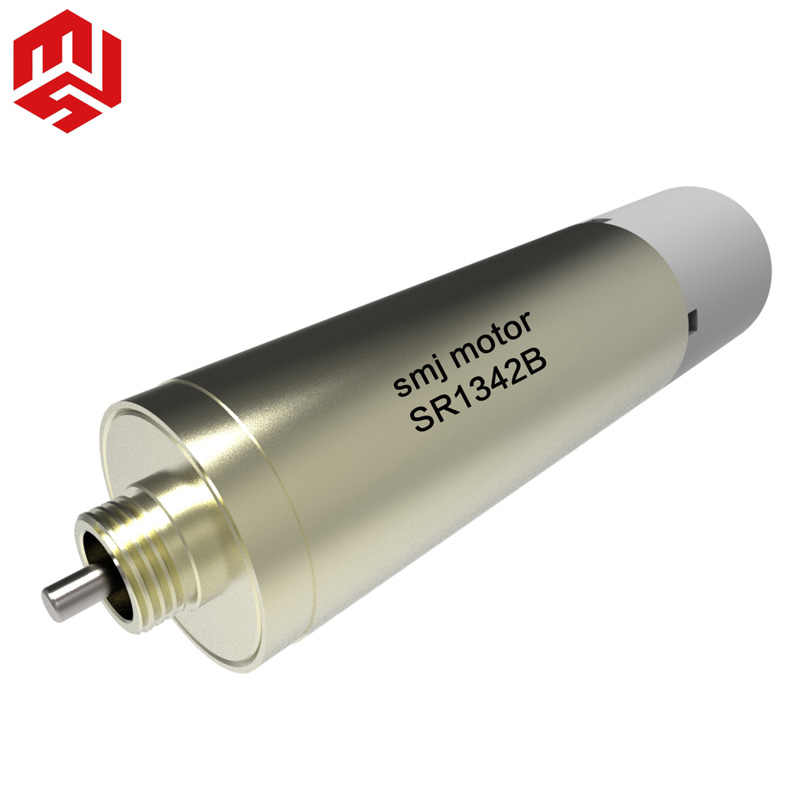

SR1342BMagner Encoder 3 Channels 1000CPT View More Data SheetNominal Voltage: 3~24V Maximum torque: 2.5mNm No load Speed: 12800rpm Stall Torque: 12.8mNm Outside Diameter: 13mm Length: 41.9mm -

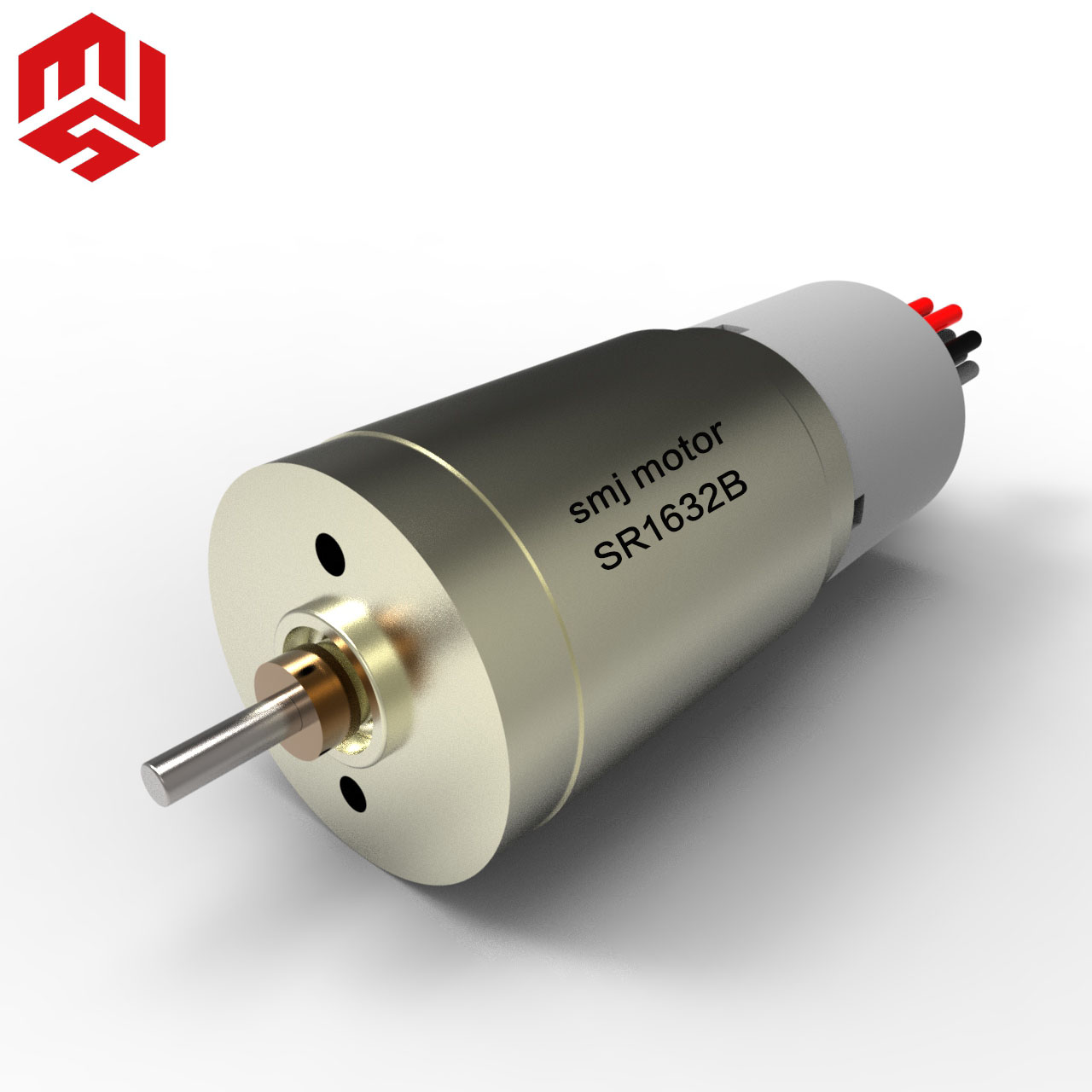

SR1632BMagner Encoder 3 Channels 1000CPT View More Data SheetNominal Voltage: 6~24V Maximum torque: 1.5mNm No load Speed: 14100rpm Stall Torque: 5.1mNm Outside Diameter: 16mm Length: 36.4mm -
SR1650BMagner Encoder 3 Channels 1000CPT View More Data SheetNominal Voltage: 3~48V Maximum torque: 4.4mNm No load Speed: 12200rpm Stall Torque: 37.3mNm Outside Diameter: 16mm Length: 48.9mm
-
SRH1650BMagner Encoder 3 Channels 1000CPT View More Data SheetNominal Voltage: 6~12V Maximum torque: 8.6mNm No load Speed: 15300rpm Stall Torque: 42.5mNm Outside Diameter: 16mm Length: 48.9mm -

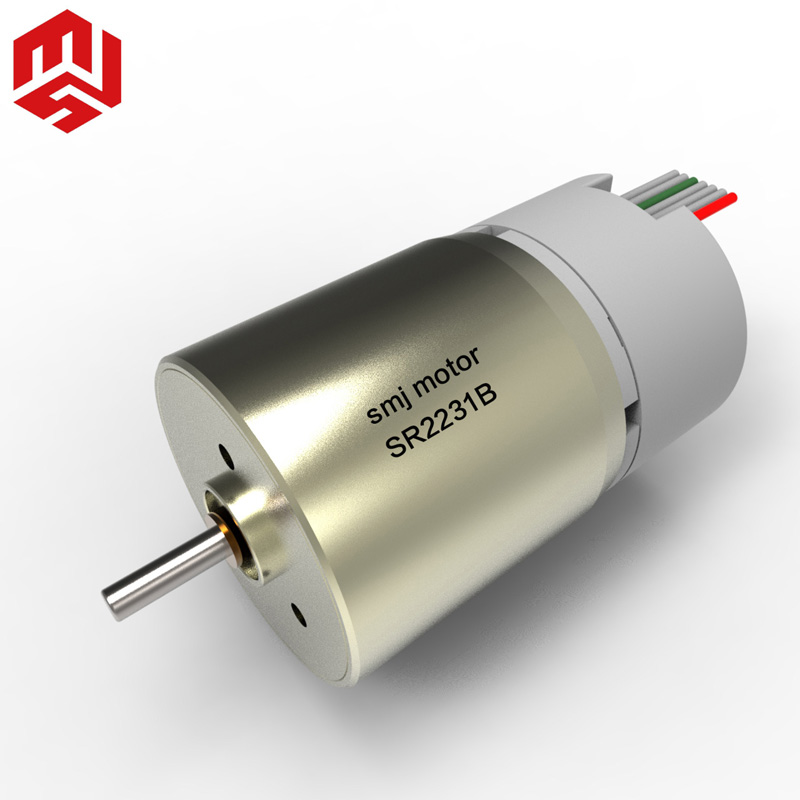

SR2231BMagner Encoder 3 Channels 1000CPT View More Data SheetNominal Voltage: 6~36V Maximum torque: 5mNm No load Speed: 10900rpm Stall Torque: 14mNm Outside Diameter: 22mm Length: 30.1mm -

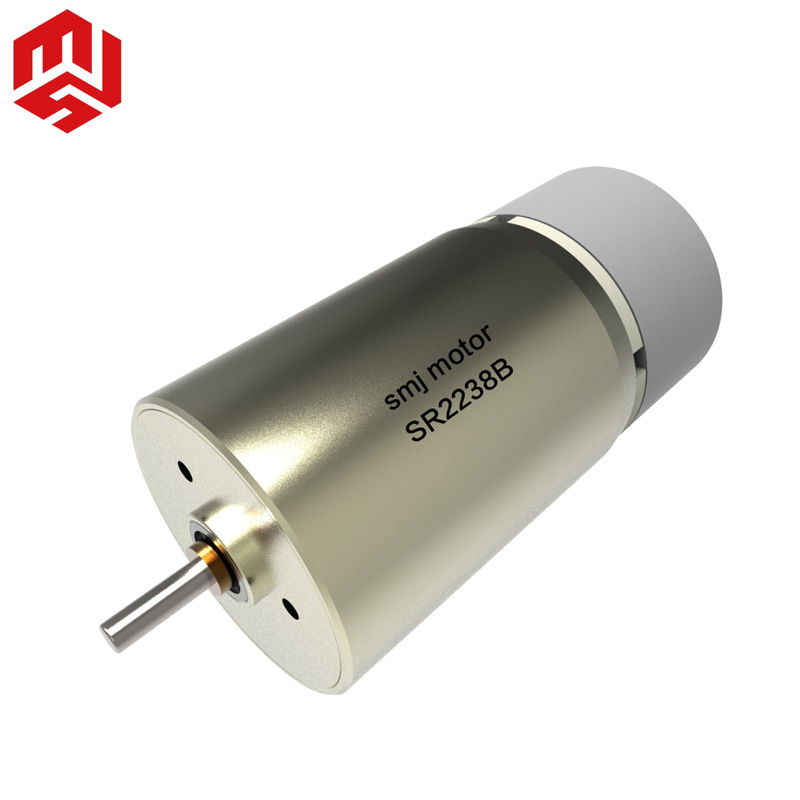

SR2238BMagner Encoder 3 Channels 1000CPT View More Data SheetNominal Voltage: 6~48V Maximum torque: 7mNm No load Speed: 7430rpm Stall Torque: 24.4mNm Outside Diameter: 22mm Length: 37.8mm -
SRH2238BMagner Encoder 3 Channels 1000CPT View More Data SheetNominal Voltage: 12~24V Maximum torque: 11mNm No load Speed: 12000rpm Stall Torque: 62.3mNm Outside Diameter: 22mm Length: 37.8mm -

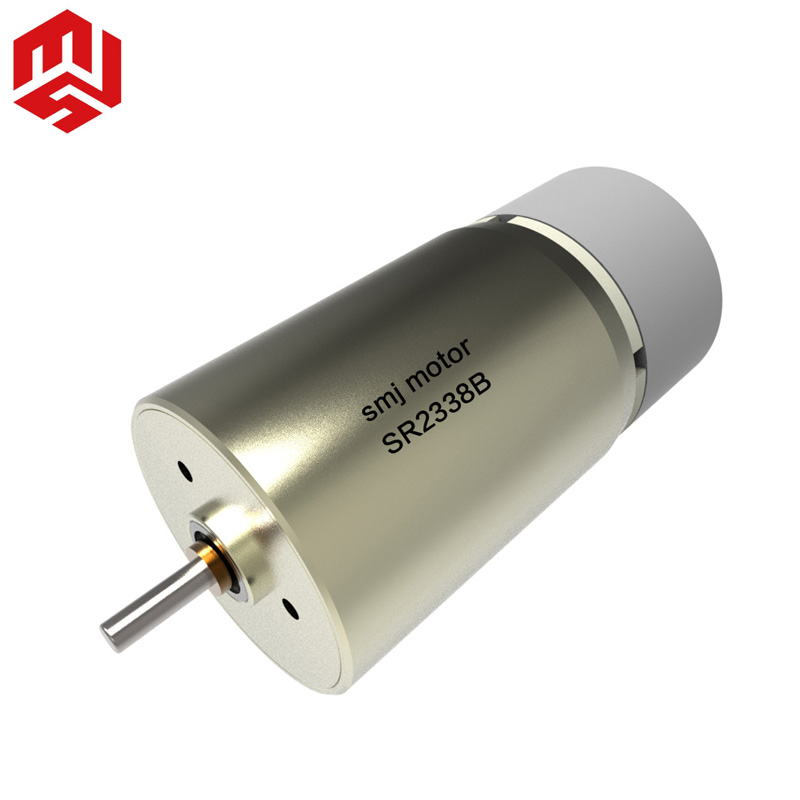

SR2338BMagner Encoder 3 Channels 1000CPT View More Data SheetNominal Voltage: 9~24V Maximum torque: 9mNm No load Speed: 10000rpm Stall Torque: 36.4mNm Outside Diameter: 23mm Length: 37.8mm -
SR2353BMagner Encoder 3 Channels 1000CPT View More Data SheetNominal Voltage: 9~48V Maximum torque: 28.1mNm No load Speed: 7570rpm Stall Torque: 126.8mNm Outside Diameter: 23mm Length: 52.8mm
